Why is a multi-disc screw press better than a belt filter press?

A multi-disc screw press offers a 90% reduction in wash water, fully automated 24/7 operation, and a non-clogging design.

Can a screw press handle oily sludge from food processing?

Yes. The multi-disc screw press is specifically designed for oily sludge. Its unique structure of fixed and moving rings creates a self-cleaning mechanism that prevents clogging.

How much can a low-temperature sludge dryer reduce sludge volume?

A low-temperature heat pump sludge dryer can reduce sludge volume by up to 80%, shrinking 4 tons of wet sludge into 1 ton of dry granules.

How does Kopay International ensure quality control?

We perform raw material verification, motor performance checks, and a 24-hour factory fatigue test before packing every order.

What is the typical power consumption of a sludge dewatering screw press?

Kopay’s multi-disc screw presses are highly energy-efficient. A model with 300kg-DS/h capacity typically consumes only 1.5kW to 2.2kW.

Why does polymer need a 3-chamber maturation system?

PAM requires 60 minutes of aging to uncoil molecular chains. A 3-chamber system ensures perfect maturation, preventing fish-eyes and saving 20% in chemical costs.

How do micro-bubbles improve Dissolved Air Flotation (DAF) performance?

DAF systems use 20-40 micron micro-bubbles to attach to suspended solids and oils, resulting in a 95%+ removal rate of Fats, Oils, and Grease (FOG).

Are Kopay wastewater systems CE and ISO certified?

Yes. Our production partners maintain ISO9001:2015 and CE certification, ensuring all equipment meets international export safety standards.

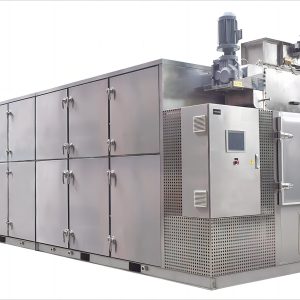

Low Temperature Low-Temperature Waste Heat Sludge Dryer in waste water treatment

Low-Temperature Sludge Dryer Manufacturer | Energy-Saving Dewatering

Name: Industrial Wastewater Sludge Dryer | Factory Direct & High Efficiency | KOPAY
Brand: KOPAY ENVIRO
SKU: LTSD001
Price: 5000 USD
Availability: InStock

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

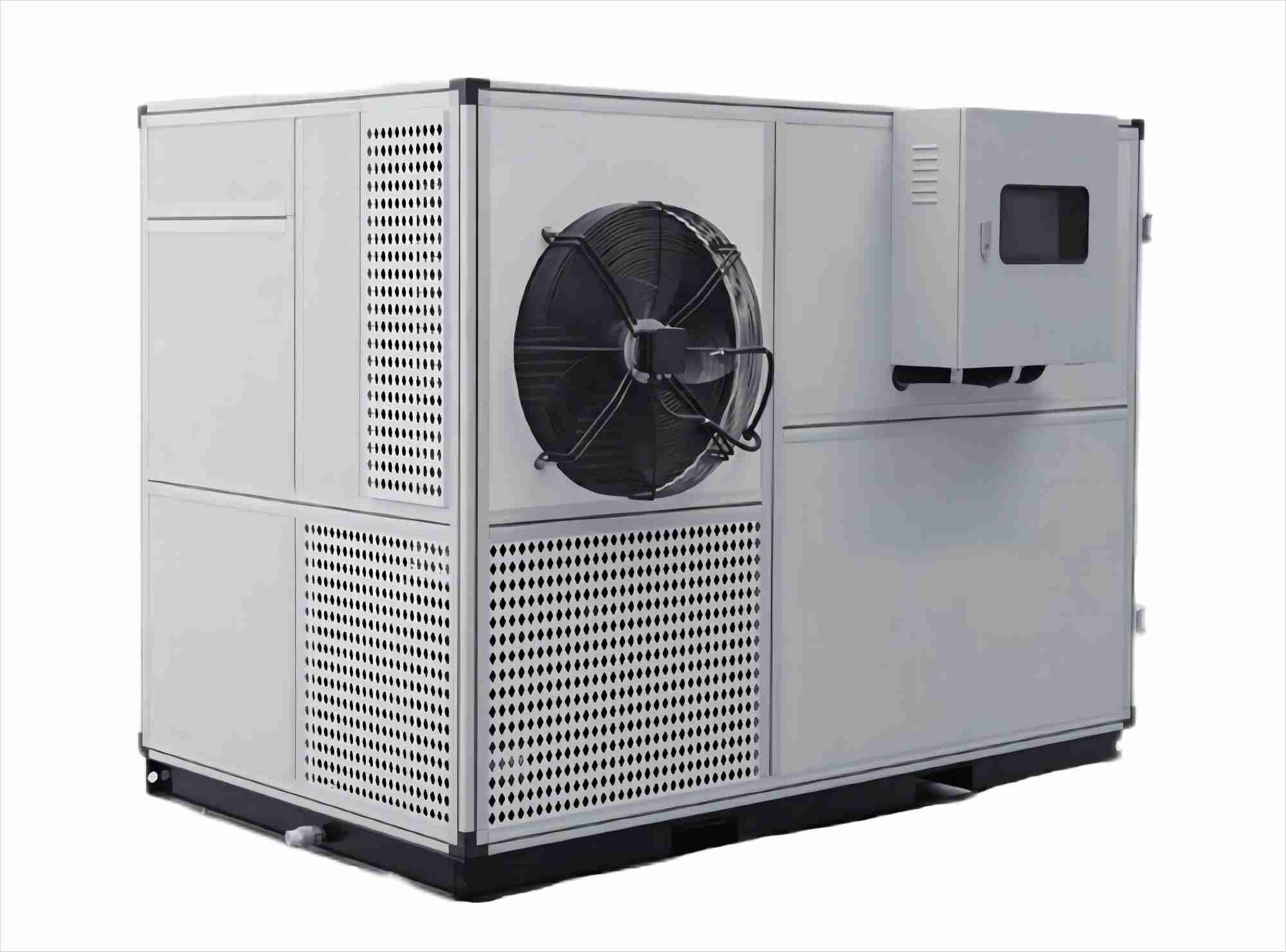

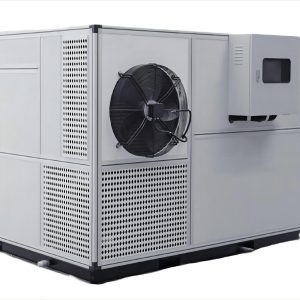

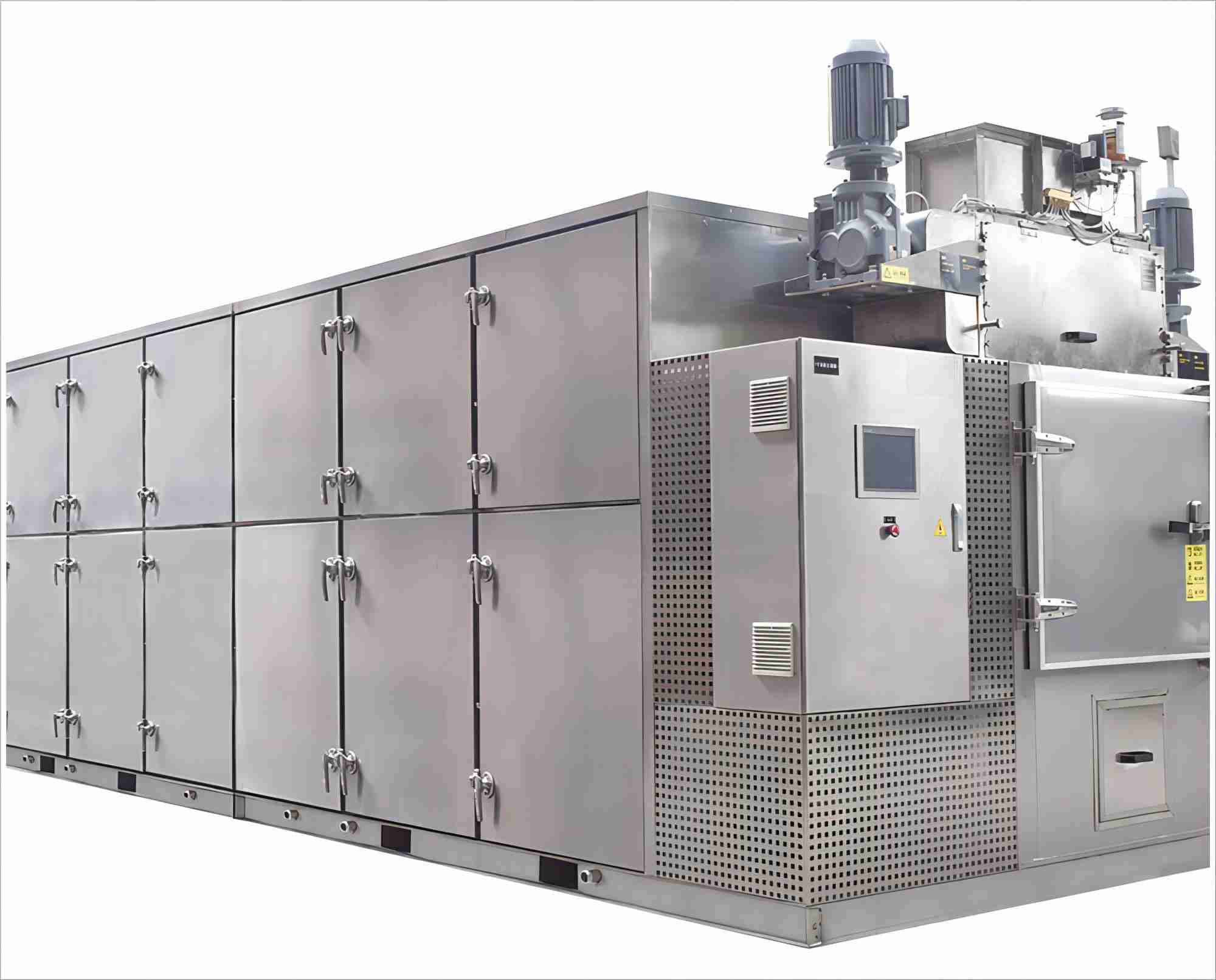

Introduction | Description: Low-temperature sludge drying equipment (also know for container type sludge dryer)

This dryer is capable of directly drying sewage or sludge with a moisture content of 83% to a dry sludge with a moisture content of 10%-30%, reducing volume by up to 90% and achieving up to 90% effective sterilization. It features low energy consumption, no pollution, and is widely used in the drying and reduction of municipal sludge and industrial sludge (such as dyeing, papermaking, electroplating, chemical, leather, pharmaceuticals, etc.). The dry sludge with a moisture content of 10%-30% can be further processed into harmless resources such as gasification, co-incineration, composting, or building materials.

Mainly according to the applications, there are container type sludge dryer…

Send Inquiry

Description
Reviews (1)

Low-Temperature Sludge Dryer Manufacturer | Energy-Saving Dewatering

As a professional industrial sludge dryer manufacturer, Kopay provides advanced heat pump dehumidification technology to help factories solve the high cost of sludge disposal.

Our systems are designed for 24/7 automated operation, shrinking 4 tons of wet sludge into 1 ton of dry granules.

Free ROI Analysis for Industrial Projects:
Don’t guess your savings. Send us your daily sludge weight and current disposal cost. Our engineering team will provide a Free ROI Report & Payback Period Analysis within 24 hours. Click here for direct WhatsApp message communication.

Closed-Loop Dehumidification: No waste heat loss and Zero Odor emissions. Safe for urban plants.
Low Temperature (40-75°C): Ensures no dust explosion risk and no damage to organic components.
80% Energy Efficiency: Consumes only 300-400 kW/h to remove 1 ton of water—50% cheaper than traditional thermal dryers.

Dewatering Screw Press for Sale

—Why Invest in a Low-Temperature Sludge Dryer?

The final step in wastewater management is the most expensive: disposal. Our Low-Temperature Heat Pump Sludge Dryer can reduce sludge moisture from 80% down to 10%–30%, shrinking the total weight by up to 4:1. This results in a massive reduction in transportation and landfill costs, allowing the machine to pay for itself within 12–24 months.

—Key Technical Advantages

Heat Pump Dehumidification Technology: Unlike traditional thermal dryers, our system uses a closed-loop heat pump. There is no waste heat loss and zero odor emission, making it environmentally friendly and suitable for urban plants.
High Energy Efficiency: Our dryer consumes only 300-400kw/h of electricity to remove 1 ton of water, making it 50% more efficient than traditional steam or electric heat dryers.
Fully Automated Operation: Integrated PLC control allows for 24/7 “set and forget” operation. No manual labor is required for the drying cycle.
Safe & Durable: Operating at temperatures below 75°C, there is no risk of dust explosion or sludge burning. All internal parts are made of corrosion-resistant stainless steel.

Model Number	Capacity (Water Evaporation)	Power Consumption	Dimensions (LWH)
KSD-500	500 kg/24h	5.5 kW	1800 x 1200 x 1800 mm
KSD-1000	1000 kg/24h	9.2 kW	2400 x 1500 x 2000 mm
KSD-3000	3000 kg/24h	28.0 kW	4500 x 2200 x 2500 mm

Free ROI Analysis: Not sure if a sludge dryer is right for your plant? Send us your current sludge volume and disposal cost per ton. Our engineers will provide a free Cost-Saving Report showing your projected monthly savings and payback period

—Key Features of our Wastewater sludge dryers:

The moisture content of the dried sludge can be adjusted to between 10% and 50%, with reduction rates exceeding 80%.
No risk of odor leakage, ensuring a clean working environment without the need for expensive odor control systems.
Direct installation within the facility is possible, allowing for centralized sludge disposal. Additionally, condensate water can be discharged directly without secondary treatment.
Efficiently dries wet sludge with an initial moisture content of 83% to a moisture content of 30%. Operating costs are as low as 180 kWh per ton
Achieves a comprehensive dehumidification performance ratio of over 4.2 kg of water per kWh. This exceeds industry standards by double the efficiency, with energy savings up to 50% compared to traditional low-temperature drying methods.
Fully enclosed system and incorporates heat pump heat recovery technology, ensuring zero heat loss and maximizing thermal efficiency.
Operating at a low temperature range of 40-75°C within a fully enclosed system, our process ensures safety with no dust hazards. With oxygen content below 12% and dust concentration below 60g/m³ during the drying process, there’s no risk of dust emissions or explosion hazards. Additionally, the discharge temperature is below 50°C, eliminating the need for secondary cooling and enabling direct storage

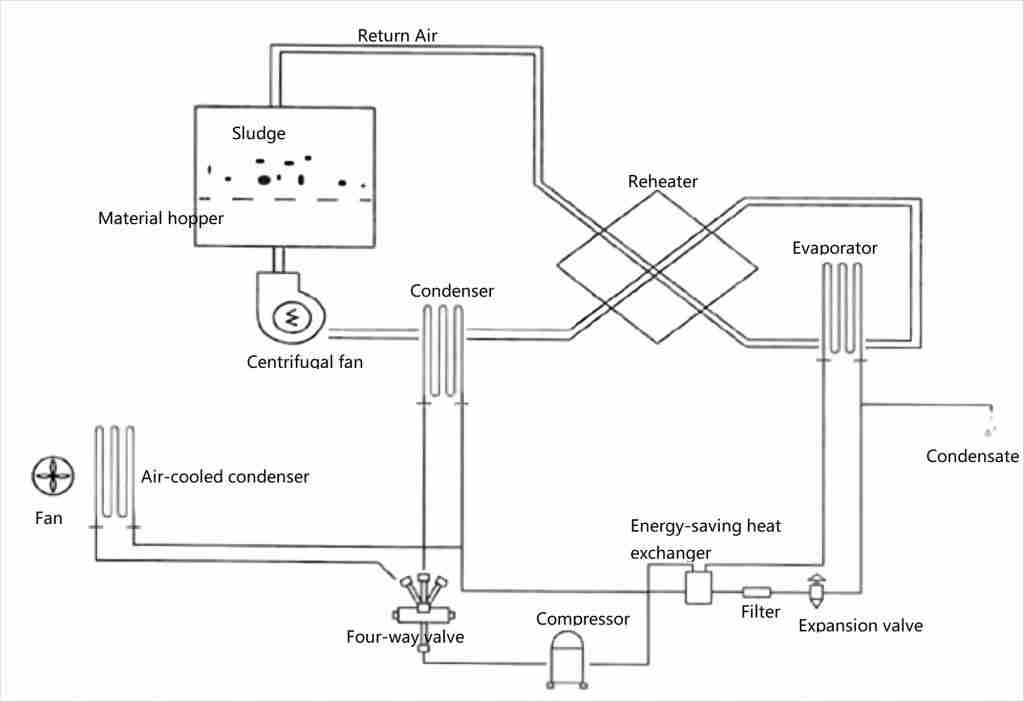

—Design Diagrame of our container type wastewater sludge dryer:

—Data Sheet for container type wastewater sludge dryers –Technical Specifications:

Item#		KPSDC-XS200FL	KPSDC-XS400FL	KPSDC-XS800FL	KPSDC-XS900FL
Standard drainage volume	kg/24h	200	400	800	900
Operating power	kW	3.5	6	12	14
Installed power	kW	6.5	10.5	21	23
Energy consumption	kg.h₂O/KW.h	2.0～4.0	2.0~4.0	2.0~4.0	2.0~4.0
Number of compressors	Set	1	1	1	1
Material hopper dimensions	mm	800800750	9008601000	125012501250	125012501250
Cooling method		Air-cooled (Optional water-cooled)
Refrigerant		R134a
Power supply	V/Hz	380V/3N~50Hz
Drying temperature	℃	40~50℃(return air)/60~80℃(supply air)
Moisture content of dry material	%	10%~40%
Dimensions	mm	170015001700	211816222000	280019002300	280019002300
Structural form		complete set
Weight	kg	650	1000	1550	1650

—List of industries where this dryer excels:

Electroplating & Surface Treatment: (Hazardous sludge is expensive to dispose of; drying saves a fortune).
Pharmaceutical Waste: Handling sensitive chemical sludge.
Municipal Sewage: Large-scale volume reduction.

Need a professional Screw Press to meet these calculations? [View KOPAY-Model Specs] or [Contact our Engineer on WhatsApp]”

For the primary dewatering stage, see our [Multi-Disc Screw Press]

—Success Case No#1: 75% Disposal Savings for an Electroplating Plant
The Problem: Client producing 5 tons/day of hazardous sludge at 80% moisture. Disposal cost: $15,000/month.
The Solution: Installed a KSD-1000 Sludge Dryer.
The Result: Sludge weight reduced to 1.2 tons/day. Disposal cost dropped to $4,000/month. Payback period: 13 months.

—Success Case No#2: 75% Volume Reduction for an Industrial Electroplating Plant

Project Location: Southeast Asia (Industrial Park)
Sludge Type: Hazardous Electroplating Sludge (Heavy Metal Rich)
The Challenge: The client was producing 5 tons of wet sludge per day with 82% moisture content. Due to strict environmental regulations, disposal costs for hazardous waste were skyrocketing, costing the company over $15,000 USD per month in transportation and landfill fees.

Our Solution:

Kopay International provided a KSD-Series Low-Temperature Heat Pump Sludge Dryer. By integrating our closed-loop dehumidification technology, we targeted a final moisture content of 20%.

The Results:

Weight Reduction: The daily sludge weight dropped from 5,000kg to approximately 1,125kg.
Moisture Control: Successfully reduced moisture from 82% to 20% in a single pass.
Energy Efficiency: The system consumed only 320 kWh per ton of water evaporated, significantly lower than traditional thermal drying methods.
Zero Emissions: Because the system is a closed-loop design, there were no odors or exhaust gases released into the factory environment, passing all local EPA inspections.

Financial Impact (ROI):

Monthly Disposal Savings: ~$11,000 USD.
Payback Period: The client fully recovered the equipment investment cost in less than 14 months.

—Why This Case Matters for Your Plant

Most factories “leak” money by paying to transport water to landfills. As your technical partner, Kopay International doesn’t just sell you a box; we help you calculate your specific ROI.
